2008-2013 C6 Stage 3 700HP Heartbeat Supercharger Package
From $23,990.00
This is our ultimate staged package for 2008-2013 Corvette LS3 models, not only will you have the power you always wanted but the true muscle car sound that Chevrolet never gave you!

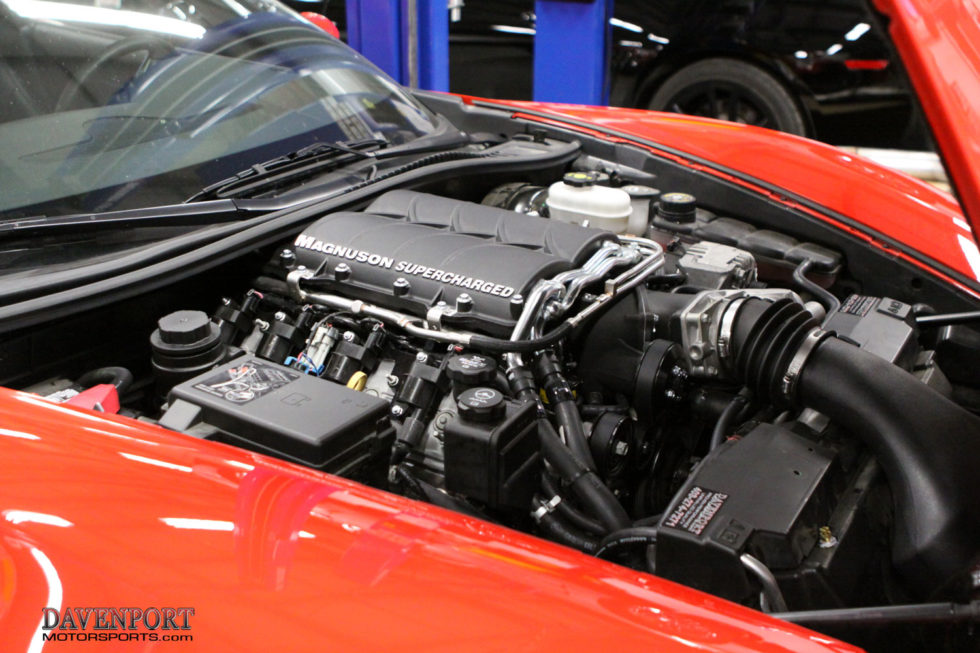

The Magnuson Heartbeat supercharger system is designed to be used with the stock C6 Corvette hood. This system allows C6 Corvette owners to obtain excellent performance improvements without decreasing reliability while still retaining the stock exterior look.
C6 Stage 3 700HP Heartbeat Supercharger Package Includes:
- Baseline chassis Dyno

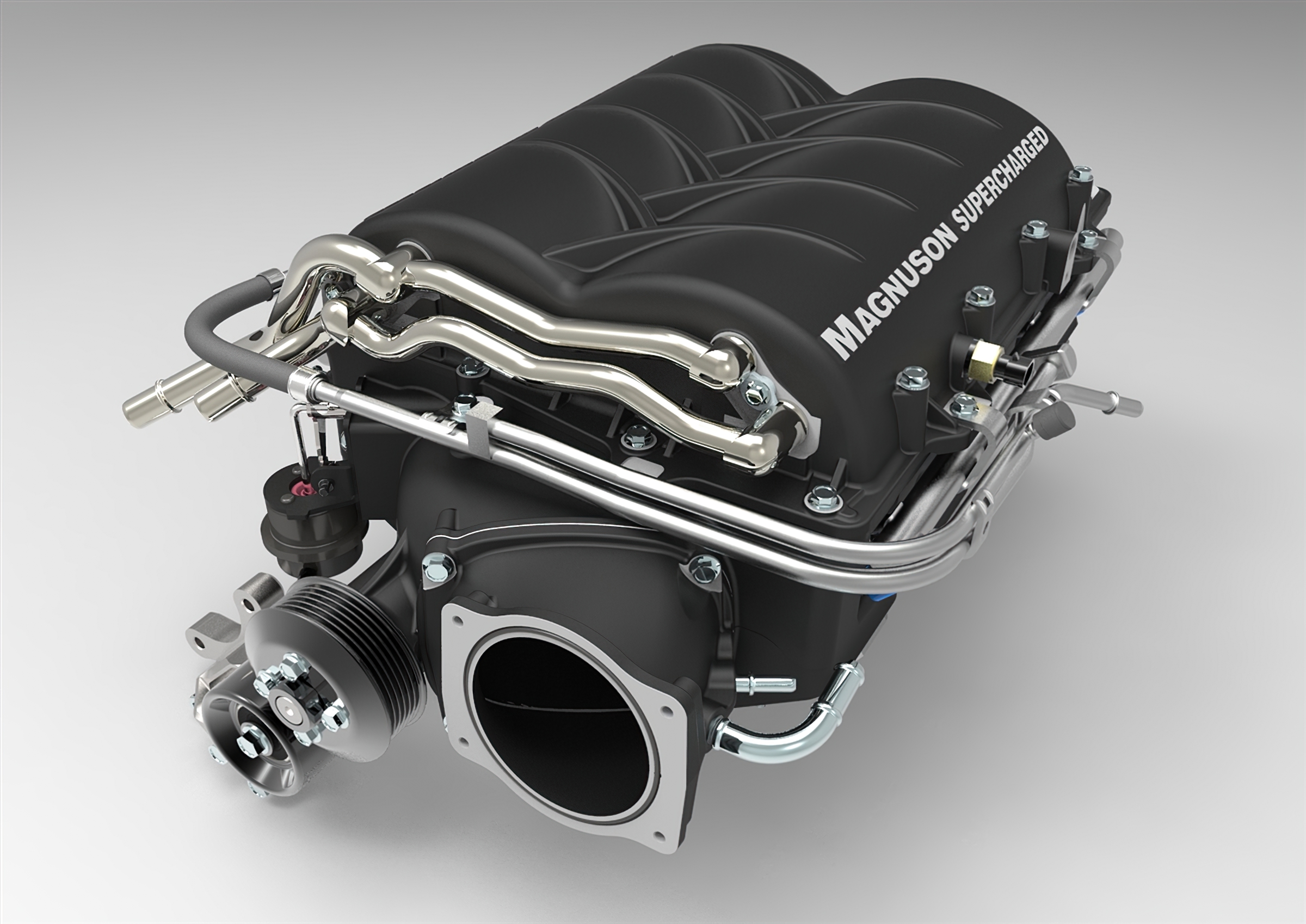

- TVS2300 Heartbeat Hybrid-roots Supercharger (Fits under stock hood)
- Patented cast aluminum high velocity port intake manifold
- Twin dual pass charge air coolers (Water to air cooled)
- 8 high-flow fuel injectors
- GM LS9 fuel rail system
- Large front mounted heat exchanger
- HD circulating pump
- American Racing long tube headers, off road connection pipe ( no cats )
- X-pipe with Nascar style merge connections
- Scott 10MM ignition wires with DVP Koolsox heat sleeves
- DVP Custom Grind Supercharger Camshaft
- Dual Valve Springs, titanium Retainers, hardened locks
- Viton Valve seals, New gaskets and seals
- Boost a Pump Fuel system upgrade
- All necessary fittings, lines, belts, and hardware required
- Final chassis dyno numbers including wide band air/fuel ratio graph
*NOTE: Optional LPE true seal ZR1 style cold air intake and Carbon fiber Engine Covers Now Available, please inquire for price and availability*
*Tunnel Shield recommended upgrade - $750*
*Supercharger clears stock hood but requires removal of hood liner or use of LPE .25 Cradle Spacers to maintain hood liner*
$23,990.00 + GST and Shop Supplies.
(Includes professional installation and custom dyno tuning)
